100nm Confocal Displacement Sensor with 17μm Spot
Compact chromatic confocal displacement sensor with 100 nm repeatability, ±0.75 mm range and 17 μm spot for non-contact height and thickness inspection.
SKU:
High-Precision Chromatic Confocal Displacement Sensor

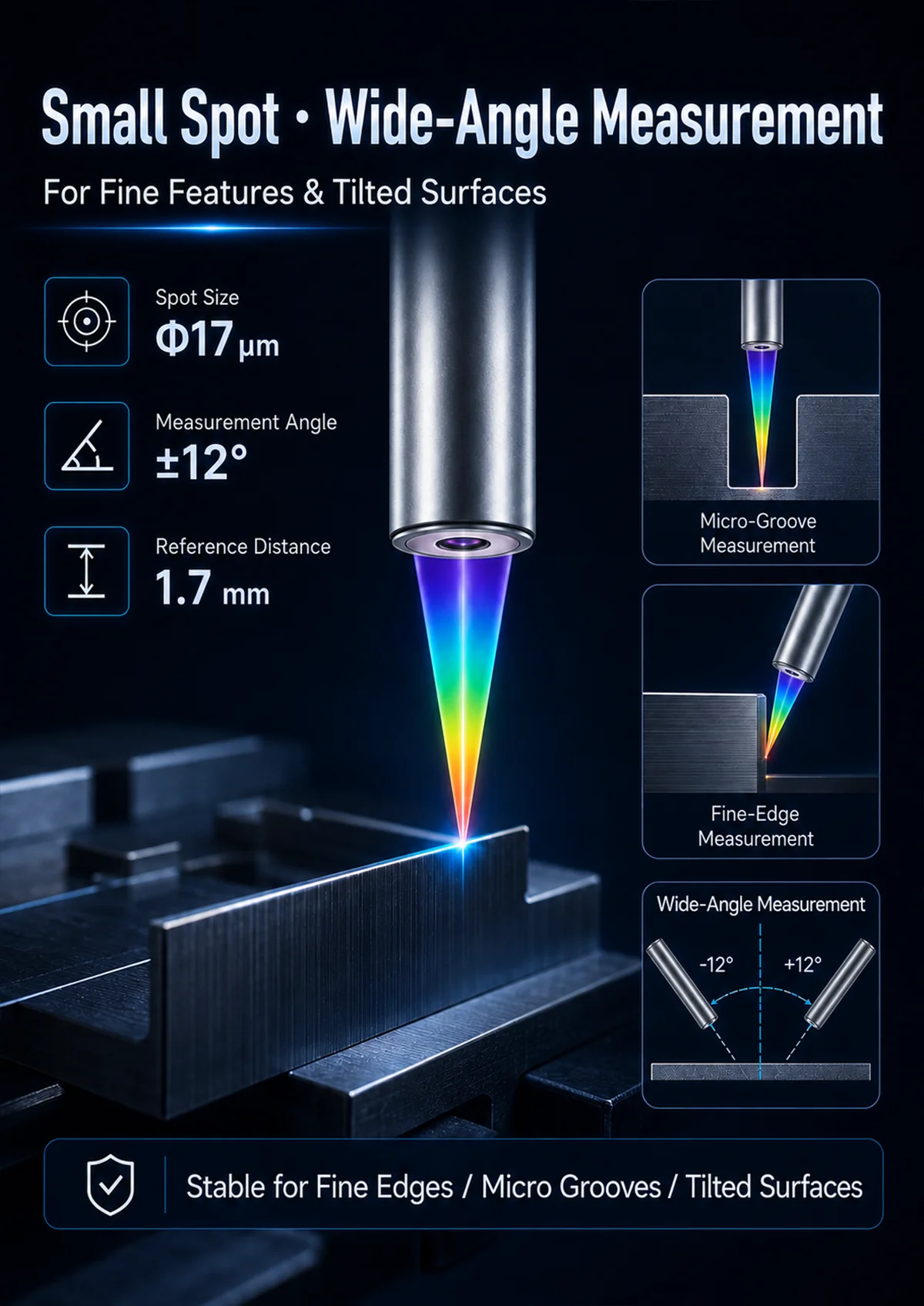

This compact chromatic confocal displacement sensor is designed for high-precision non-contact measurement in industrial inspection systems. It features 100 nm repeatability, ±0.75 mm measuring range, 1.7 mm reference distance, and 17 μm spot diameter.
The slim Φ3.8 × 85 mm probe design makes it suitable for limited installation spaces. It can be used for surface height measurement, thickness inspection, displacement detection, position measurement, and precision parts inspection.
Key Features
100 nm repeatability
±0.75 mm measuring range
17 μm spot diameter
Compact Φ3.8 mm probe
Non-contact measurement
Suitable for glass, film, metal, and electronic component inspection
This industrial measurement sensor is suitable for automated optical inspection, precision manufacturing, electronics inspection, glass thickness measurement, film measurement, and small component position detection.
Learn more about chromatic confocal measurement technology .
- Linearity Error
- ＜±0.75 μm
- Measuring Angle
- ±12°
- Measuring Range
- ±0.75 mm
- Min. Measurable Thickness
- 10% of F.S.
- Model
- SFS-D1502
- Probe Size
- Φ3.8 × 85 mm
- Product Type
- Chromatic Confocal Displacement Sensor
- Protection Rating
- IP40
- Reference Distance
- 1.7 mm
- Repeatability
- 100 nm
- Spot Diameter
- Φ17 μm
- Temperature Characteristic
- ＜0.03% F.S./°C
- Weight
- 23 g
